specification of V-4WXO-SE

Model no: V-4WXO-SE

4 way all tube electronics crossover system (12db/oct)

This is a very high-end tube four way crossover system. The cut-off slope is 12db/oct, which makes it very adaptable to different types of speakers and amplifiers. Crossover frequency modules are replaceable for different requirements. An optional cut-off slope of 18db or 24db is also available at customer request. A selectable 16 crossover freq module is offered for an additional $100 or 256 selectable module for an additional $150. Customers can specify any frequency range with equal intervals.

With this crossover system you will experience exceptional detail inside the music, every note displayed in front of you effortlessly. Clarity without boundaries that conventional systems don't begin to compare with.

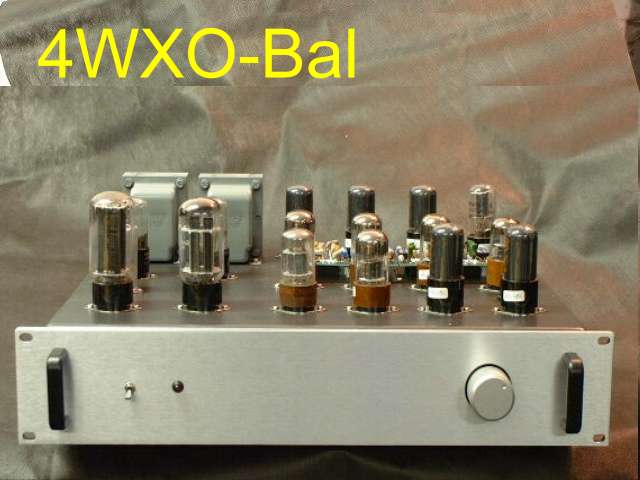

(The above picture shows a very special version of a fully balanced crossover system with an all tube regulated power supply)

Specifications

No. of inputs	1 set of RCA inputs
No. of outputs	1 set of RCA hi-freq outputs + 1 set of RCA lo-freq outputs + 1 set of RCA super hi- freq outputs + 1 set of RCA super-lo freq outputs
Freq response	1Hz - 100Khz (-3db)
S/N	better than -85 db
Max. output volt	10V rms
Gain	x 0.9
Phase	non-inverted
manufacturing	hand-wired point to point for tube section
Tubes used	6 x 12AU7 or 12AX7

1 year parts and labor warranty under normal operation conditions

standard chassis : Gold/ Black/Metallic MDF , Aluminum chassis

(optional chassis : Mirror steel, black piano , solid-oak )
