Active Crossovers

Model no:   V-4WXO-SE-Mk2
C$3,280 Untitled Document [US$ 2624]

4WXO-1.jpg    4WXO-BAL-3.jpg (37925 bytes)
4 way all tube single-ended electronics crossover system (12db/oct)

This is a very high-end tube four way crossover system. The cut-off slope is 12db/oct, which makes it very adaptable to different types of speakers and amplifiers. Crossover frequency modules are replaceable for different requirements. An optional cut-off slope of 18db or 24db is also available at customer request. A selectable 16 crossover freq module is offered for an additional C$150 or 256 selectable module for an additional C$200. Max. 8 modules can be installed .Customers can specify any frequency range with equal intervals.

With this crossover system you will experience exceptional details within the music, every music note flowing in front of you effortlessly . Clarity without boundaries which conventional system don't even be able to compare with

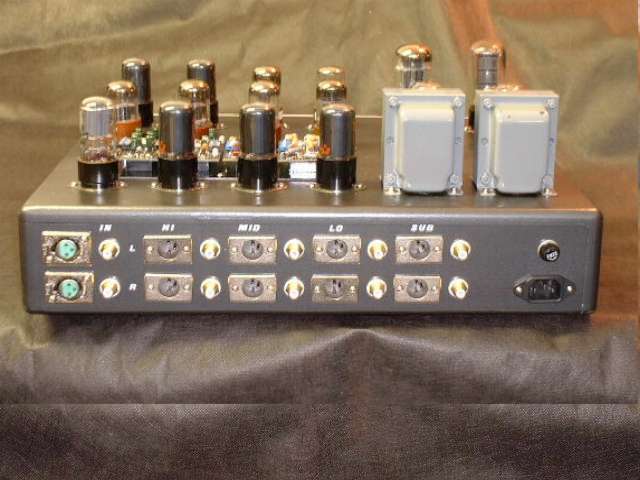

(The above picture shows a very special version of a fully balanced crossover system with an all tube regulated power supply)


No. of inputs 1 set of RCA  inputs
No. of outputs 1 set of RCA  hi-freq outputs (High pass filter)

1 set of RC  lo-freq outputs (Low pass filter)

1 set of RCA super-lo freq outputs (Low pass filter)

1 set of RCA super-hi freq outputs (High pass filter)

Freq response 1Hz - 100Khz (-3db)
S/N better than -85 db
Max. output volt 10V rms
Gain x 0.9
Phase non-inverted
manufacturing hand-wired point to point for tube section
Tubes used 6 x 6922 / 6DJ8 / ECC88

1 year parts and labor warranty under normal operation conditions
standard chassis : Gold/ Black/Metallic  MDF , Aluminum chassis

(optional chassis : Mirror steel, black piano , solid-oak )
