Phono Tube Pre-Amps

Model no: P-001 (include external power supply)

Retailer typical on-sale price : C$980 Untitled Document [US$ 784]

Get our no-Frill direct-order price of C$480 [US$ 384] only

MM/MC Phono pre-amplifier

This is a pure solid-state MC + MM phono stage design. All components are meticulously selected and crafted in order to achieve the finest sound quality. This product offers superb resolution at a super bang-for-buck price.This phono stage provides both openness and a sweetness of character in a single unit. Offering a 40db MM gain and 66db MC gain (user presettable gain from 40db to 75db possible)

This newest Mk3 version comes with a super quiet external power supply upgrade (included) , which can let users achieve super low noise performance even with a low output MC cartridge of 0.1-0.2mV range.

This unit can also take MM cartridges from MC input, and boost the MM cartridge output level the same as CD signal level.

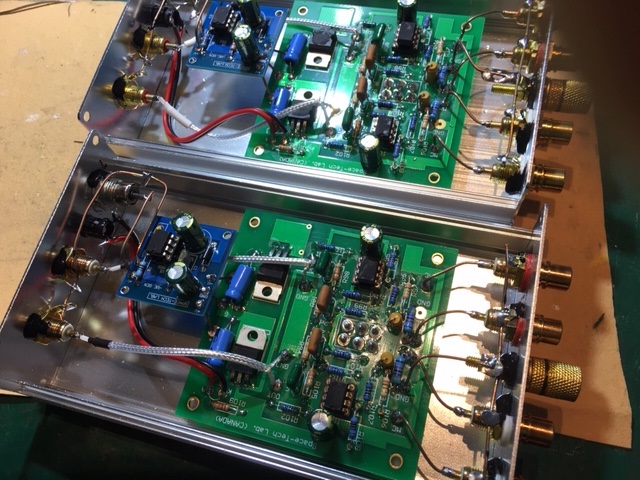

This unit is built with gold plated copper circuit board to ensure best signal transmission and minimal loss , +/- 0.5db RIAA accuracy, very natural and smooth sound. Tonal quality and specification easily pair with those selling $2K-4K MC/MM solid-state phono stage in the market.

MM input suitable for MM cartridge with 47K ohm impedance

MC input suitable for MC cartridge with 50ohm - 47Kohm impedance or MM cartridge with 47K ohm impedance

Military grade teflon insulation, heavily shielded silver signal wire for transparent details and excellent micro-dynamics performance.


No. of inputs 1 set of MM + 1 set of MC inputs
No. of outputs 1 set of RCA outputs
Freq response RIAA +/- 0.5db  from 20Hz - 20Khz
S/N > 90db MM
Max. output volt 3Vrms
Phase non-inverted
manufacturing ultra heavy duty gold plated copper circuit board
user presettable MC gain / load

x3 - x50 for MC section (result of max. 75db gain user presettable)

loading impedance 1ohm - 100Kohm user presettable


1 year parts and labor warranty

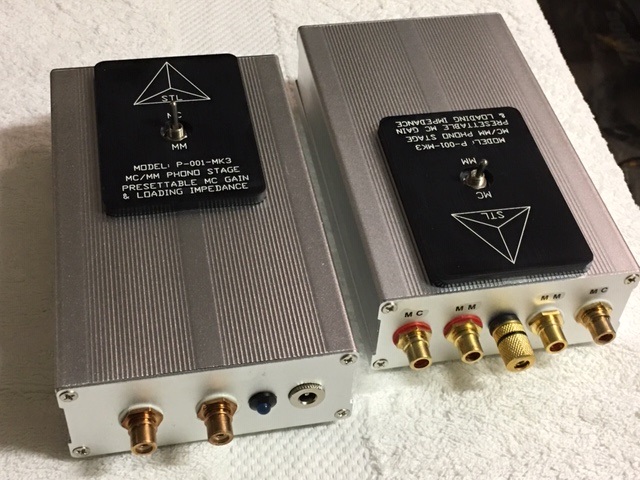

standard chassis : silver aluminum chassis

(optional chassis : MDF, aluminum, solid-oak..etc)
