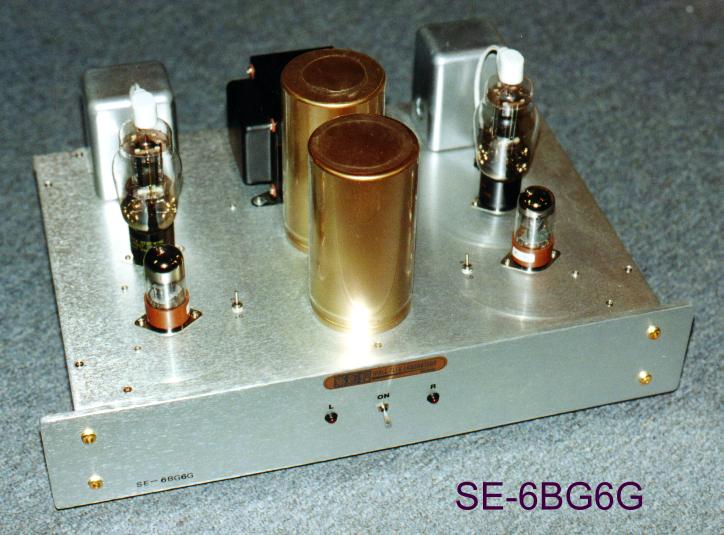

Model no:   SE-6BG6G
10W x 2  single-ended power amplifier

This is one of our state-of-the-art single-ended power amplifiers, using the more uncommon 6BG6G power tube as the output section. A super high grade single-ended output transformer is also employed to ensure the highest sonic quality. This amplifier is designd to drive a loading impedance from 0.5ohms to 32ohms, and boasts a high frequency response up to 120Khz.

6BG6G is a tube which is designed with the capability of operating superbly in very high frequencies. Therefore it has a solid sounding, high definition, very transparant characteristic which makes it very suitable for classical, vocal, pop and jazz reproduction.




Specifications
No. of inputs 1 set of RCA inputs   (optional : balanced inputs)
No. of outputs 1 set of speaker outputs ( 0.5ohm - 32 ohm self-adaptive)
Freq response 40Hz - 120Khz (-3db)
S/N better than 90 db
Distortion less than 0.2% at 1Wrms output
Gain x5
Phase non-inverted
manufacturing hand-wired point to point
Tubes used 2 x 6SL7 + 2 x 6BG6G
Output power /ch 10Wrms pure class A, single-ended



option: 5U4G tube rectifier add C$250

option: XLR balanced input stage add C$300
1 year parts and labor warranty, tubes 90 days under normal operation conditions
standard chassis : Gold/ Black/Metallic  MDF , Aluminium chassis

(optional chassis :  Mirror steel, black piano , solid-oak )
