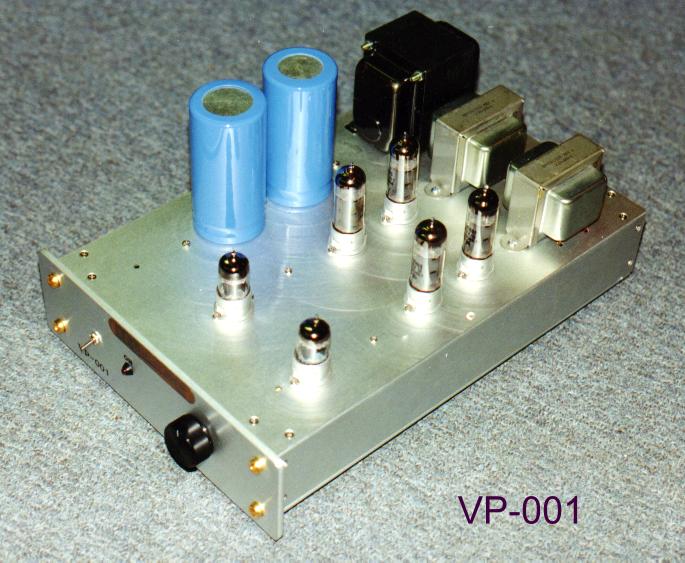

Model no: VP-001

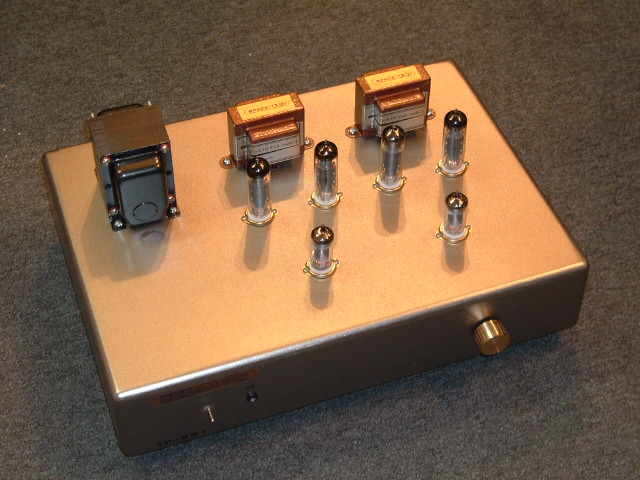

18Wrms /channel all tube power amplifier

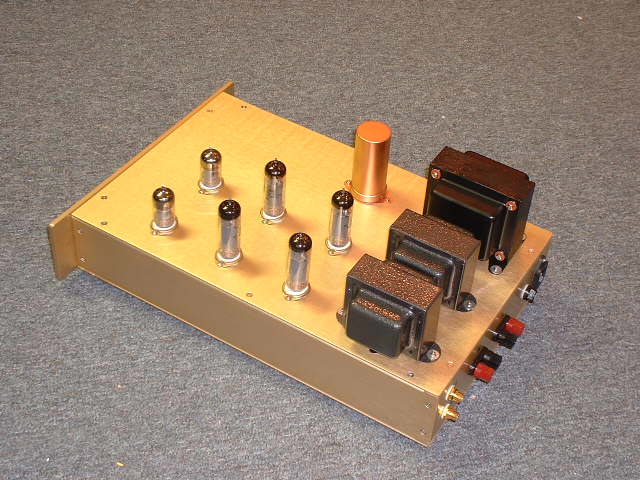

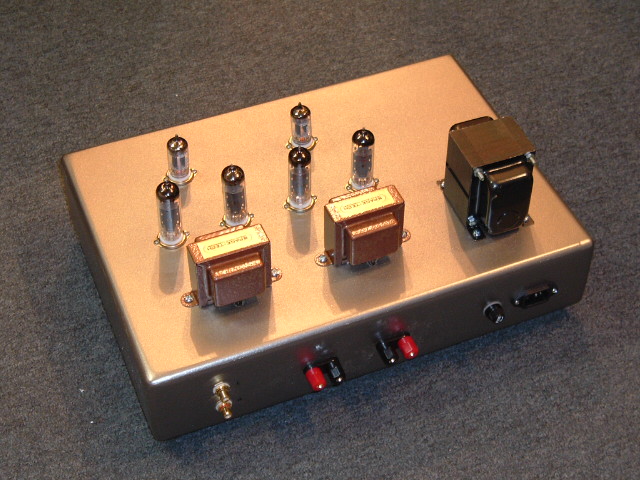

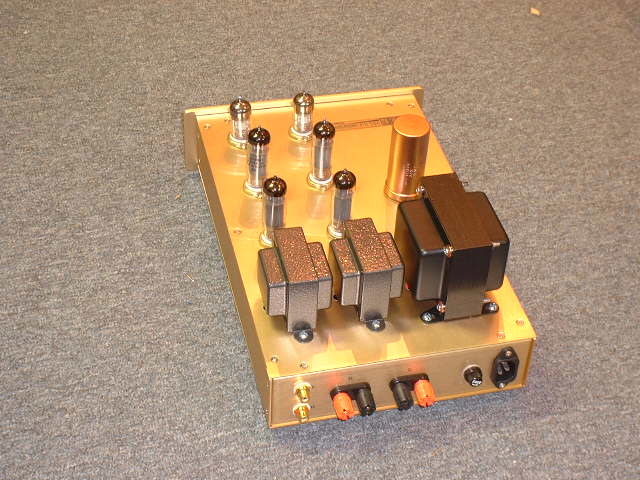

This is a relatively smaller power output push-pull power amplifier. It utilizes the most common 6BQ5/EL84 tubes in the output stage. A wide-band high grade output transformer is used in order to achieve the best price-performance . A large filter capacitor in parallel with many smaller capacitors provide both good power supply response and stability in sound quality . This amplifier can give a very warm and sweet musical rendition. It is best run with a medium to high efficiency speaker for optimum performance. Recommend speaker efficiency minimum 86 db/W.


Specifications
No. of inputs 1 set of RCA inputs
No. of outputs 1set of speaker outputs  , 4-16 ohm
Freq response 5Hz - 40Khz (-3db)
S/N > 85 db
Power output 18Wrms class AB  (optional: 10Wrms pure class A)
Phase non-inverted
manufacturing hand-wired point to point

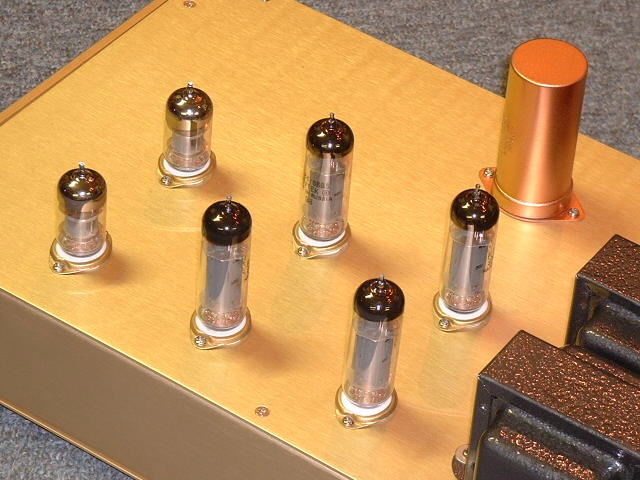

Tubes used 2 x 12AX7/12AU7 + 4 x 6BQ5


option: true balanced input stage add C$300

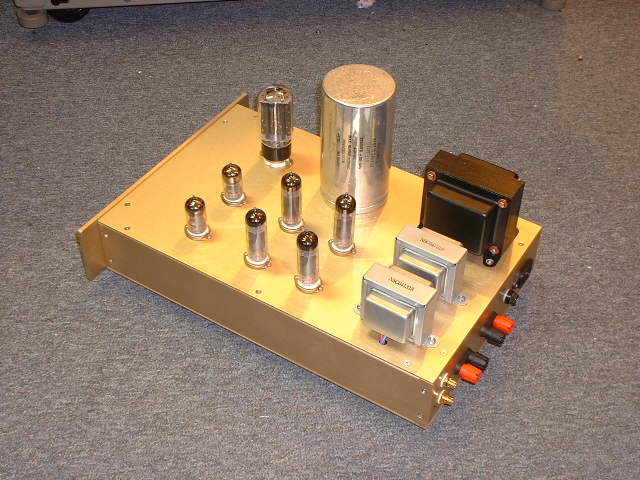

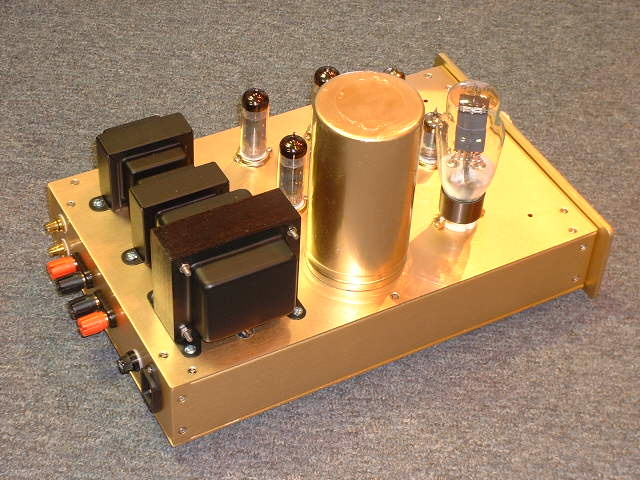

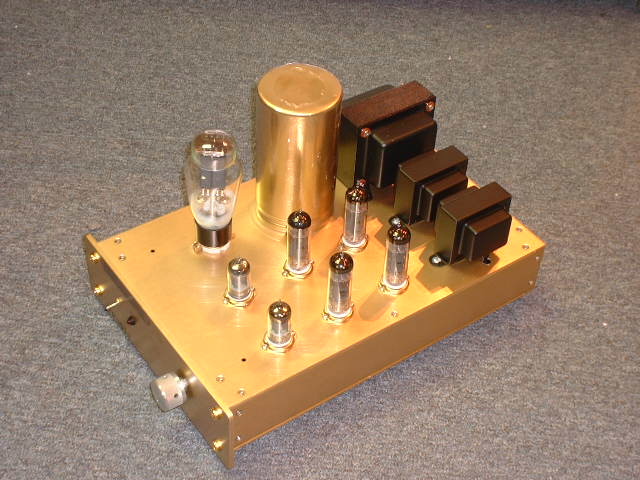

option: tube rectifier + enhanced Transformer add C$450

option : super big power capacitor / dual capacitors add C$100
1 year free parts and labor warranty, tubes 90 days under normal operation conditions
standard chassis : Gold/ Black/Metallic  MDF , Aluminum chassis

(optional chassis : Mirror steel, solid-oak )
