Pre-Amps - Classic 100 Series

Model no:

QA-118-BAL-TXC C$9,880 Untitled Document [US$ 7904]

QA-118-BAL-TXC-1 QA-118-BAL-TXC-1

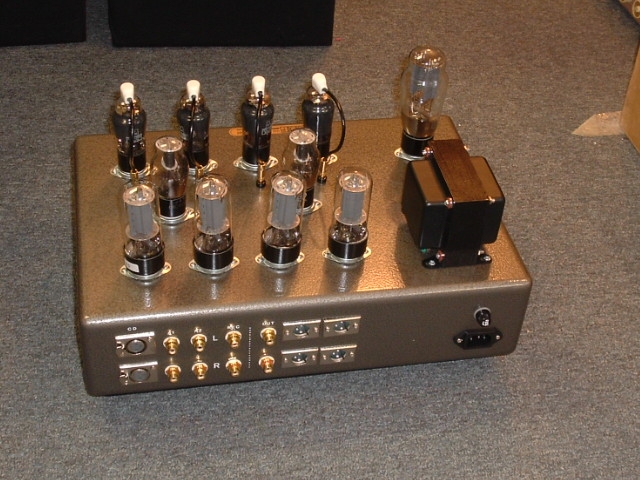

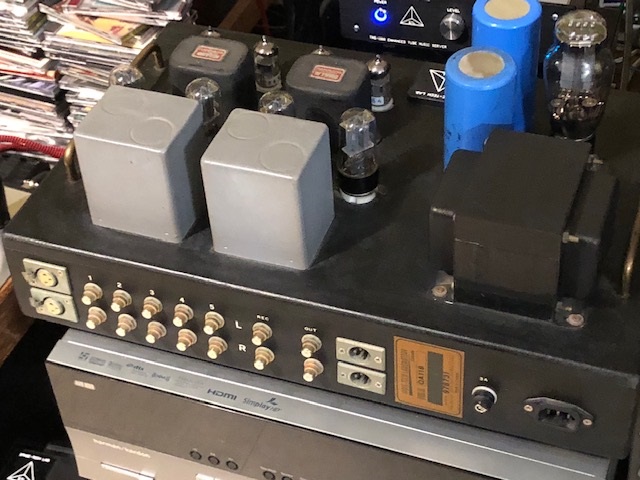

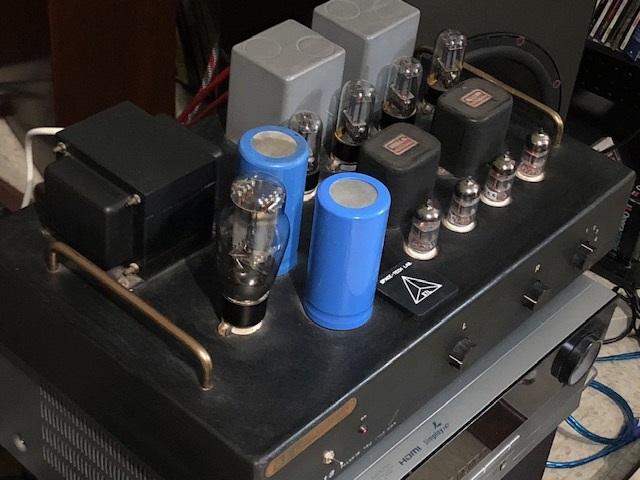

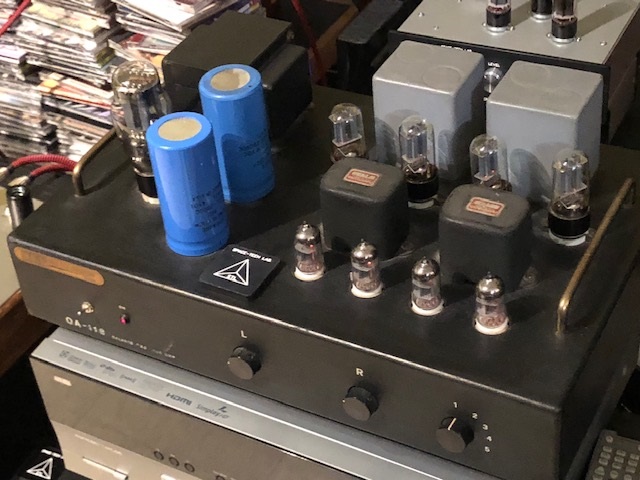

This is our top model of Classic 100 series, which comprises a totall of 9 tubes and 5 transformers to make this a superior performance pre-amplifier.

All NOS transformer coupling instead of classic capacitors coupling, exceptional rich and smooth with airy open sound stage, syrup alike tenderness with warm elastic bass performance.

The tube rectifier uses a standard 5U4G, it can easily upgrade with our STR-104, STR-1001, STR-1002 or STR-1003

This superlative unit can easily surpass the sonic performance of any competitor’s pre-amp which is not built with transformer coupling and organic tube rectification.

This pre-amp uses the purest ORGANIC design, no negative feedback, no circuit board(PCB), no transistors, all component-to-component hand wiring, built with very high grade selected components. It also features fully balanced input and output capabilities.


Various types of Super rectifier up-grade possible,

please check our Accessories Section

or click here ACCESSORIES

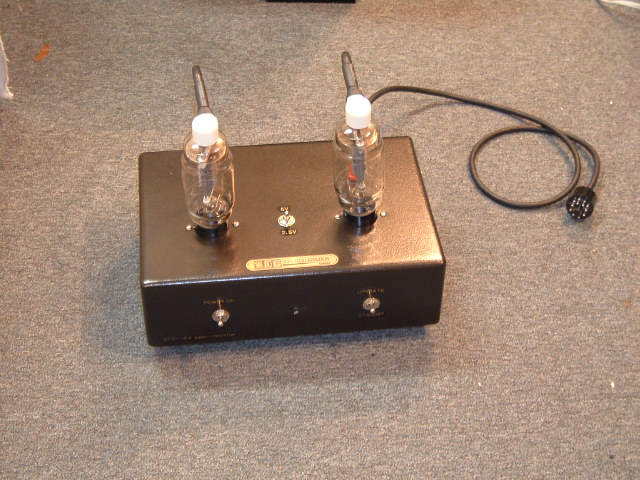

With the STR-104 super rectifier adaptor, you can use 300B, 2A3 , 45 , 50 , 80, 83, 1616 , 3B28 or 866A as rectifier tubes option.

With the STR-1001, 1002, 1003, 1004 super rectifier adaptor, you can use 300B,, 45 , 50 , 80, 83, 845, 805, 211 , 872A and 575A as rectifier tubes option.

No. of inputs 1 set of XLR inputs and 4 sets of  RCA inputs
No. of outputs 2 sets of RCA and 1 set of balanced pre-amp outputs
Freq response 5Hz - 50Khz (-3db)
S/N > 85 db
Gain x3- x8 depend on tubes
Phase non-inverted
manufacturing hand-wired point to point/comp-to-comp
Tubes 4 x 6922 (alt: 6DJ8, ECC88, ECC188, ECC288, 6N1, 6N2)

4 x 6SN7 (alt:6SL7, 6SU7, 6188, 5691, 5692....etc)

1 x 5U4G (alt: 5Y3/5AR4/274B/53KU/5R4...etc)


Additional Upgrade option:

solid-oak chassis add $300

Super high gloss piano solid-oak finish add $600


1 year parts and labor warranty under normal operation conditions
standard chassis : Gold/ Black/Metallic MDF , Aluminum chassis

(optional chassis : Mirror steel, black piano , solid-oak )
