Active Crossovers

Model no: V-2WXO-BAL-Mk2
C$2,880 Untitled Document [US$ 2304]

2 way all tube balanced electronics crossover system (12db/oct)

This is a very high-end tube two way crossover system. The cut-off slope is 12db/oct, which makes it very adaptable to different types of speakers and amplifiers. Crossover frequency modules are replaceable for different requirements. An optional cut-off slope of 18db or 24db is also available at customer request. A selectable 16 crossover freq module is offered for an additional C$180 or 256 selectable module for an additional C$200. Max. 4 modules can be installed . Customers can specify any frequency range with equal intervals.

With this crossover system you will experience exceptional details within the music, every music note flowing in front of you effortlessly . Clarity without boundaries which conventional system don't even be able to compare with

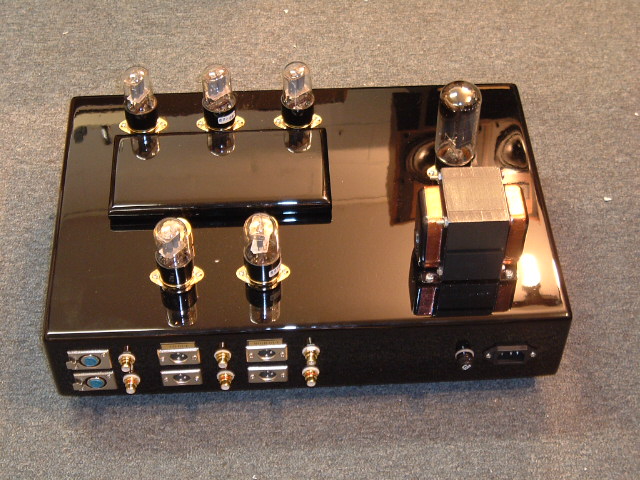

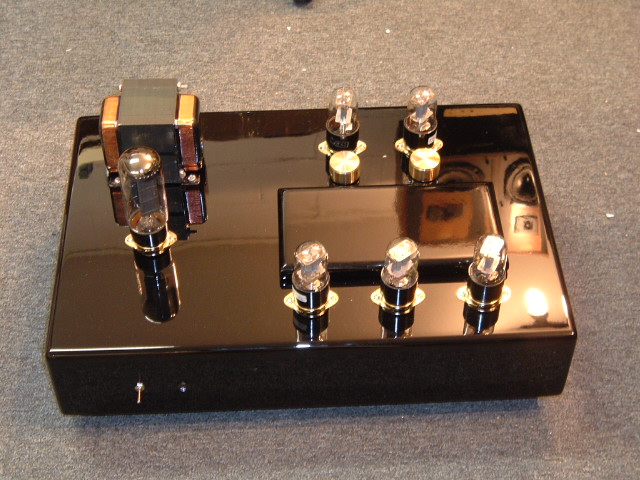

Upper photo set shows a special version with an enhanced power supply, a 5U4G tube rectifier, it also boasts an additional main level control. 24db/oct slope.

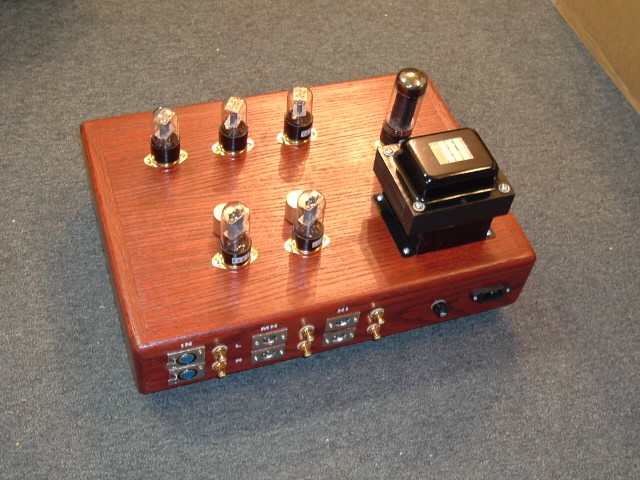

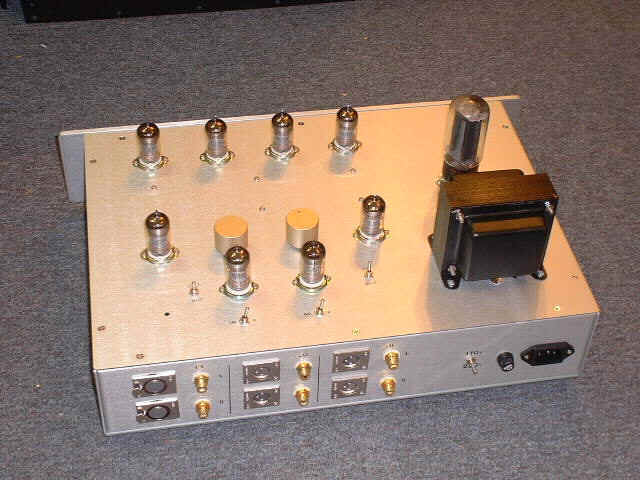

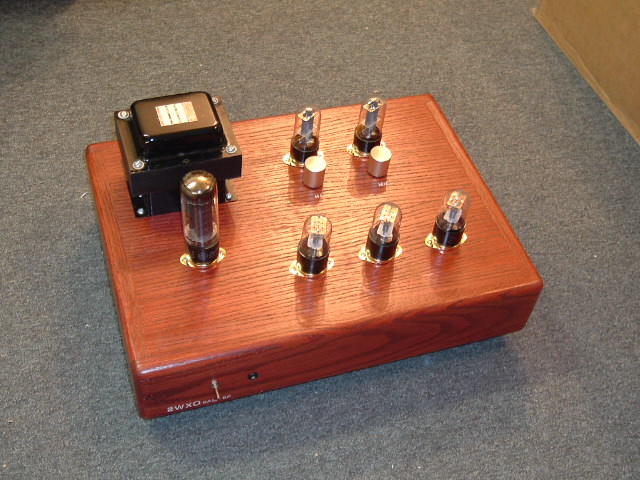

Middle and lower photo set shows a special version with an enhanced power supply and 5U4G tube rectifier, medium size tubes (uses both 6SL7 and 6SN7 ), 12db/oct slope.


No. of inputs 1 set of RCA + balanced inputs
No. of outputs 1 set of RCA+ balanced hi-freq outputs + 1 set of RCA+balanced lo-freq outputs
Freq response 1Hz - 100Khz (-3db)
S/N > 85 db
Max. output volt 10V rms
Gain x 0.9
Phase non-inverted
manufacturing hand-wired point to point for tube section
Tubes used 5 x 6922 / 6DJ8 / ECC88

1 year parts and labor warranty under normal operation condition
standard chassis : Gold/ Black/Metallic MDF , Aluminum chassis

(optional chassis : Mirror steel, black piano , solid-oak )
