Model no: SP-ST-200
C$2780/pr (clear plexiglass version) [US$ 2224]

C$2980/pr (black plexiglass version) [US$ 2384]

C$3080/pr (black MDF version) [US$ 2464]

C$3880/pr (piano black MDF version) [US$ 3104]

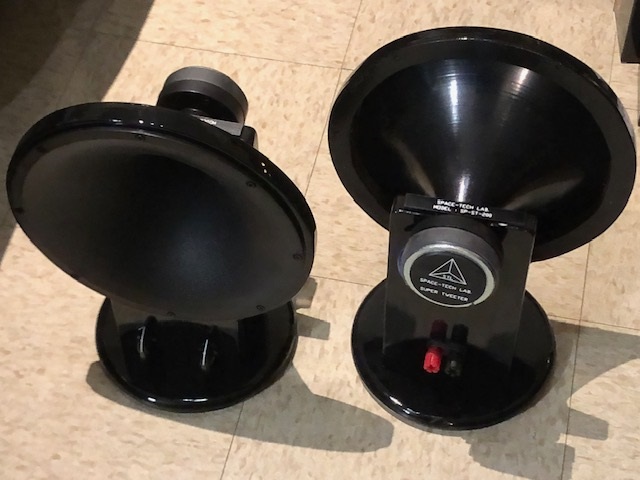

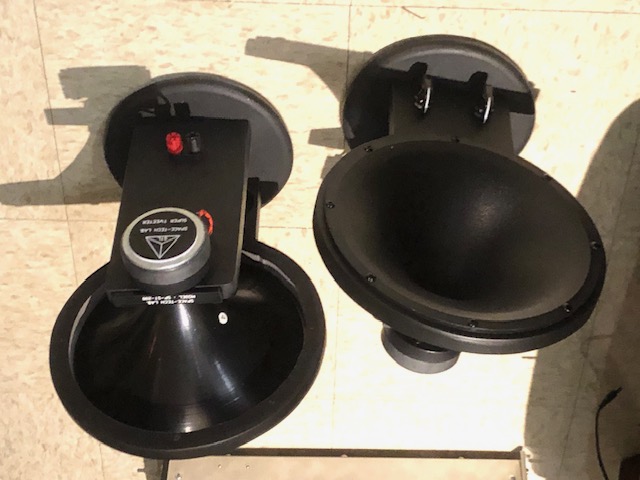

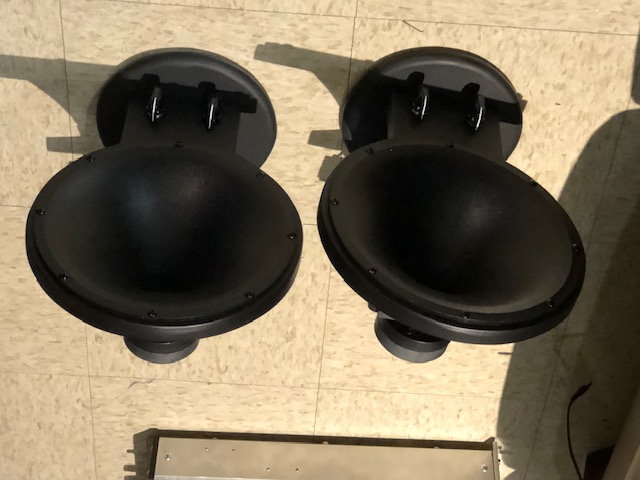

Hi-End 10 " Horn super tweeter

This is an add-on Horn module for any existing speaker system. Diameter of horn is a moderate 10". This unit can add superb 3D texture to the music as well as clarity and micro details with weight. Built-in crossover use NOS high quality oil cap with precision output level control. Comes with 3 different crossover frequencies settings (3Khz, 6Khz and 9Khz) It can be simply put on top of any existing speaker system to impart an airy, dynamics, weight and 3D holographic imaging.

The wide dispersion angle of this horn give super open and live realistic sound stage regeneration where ribbon or dome super tweeter cannot compare with. High damping plastic material with non-metallic diaphragm make sure no metallic harshness in the music being reproduced. Totally rich smooth, textured details with super high focuing and resolution.

Variable output controls with high efficiency low loss oil capacitor and Western Electric cloth wires and silver wiring crossover, ensure 100% matching capability with your existing system.



Specifications

Input terminals	Multi-purpose Banana jacks
Power Amp rating	0.5W - 300Wrms
Freq response	3/6/9 KHz - 20Khz  (default) / (custom crossover frequency possible upon request)
Efficiency	>100db
Max. power input	300W full range musical
Impedance	> 8 ohm above crossover frequency , over 100ohm impedance below 1Khz (no loading effect for amplifier)



1 year parts and labor warranty
