Hybrid Power Amps

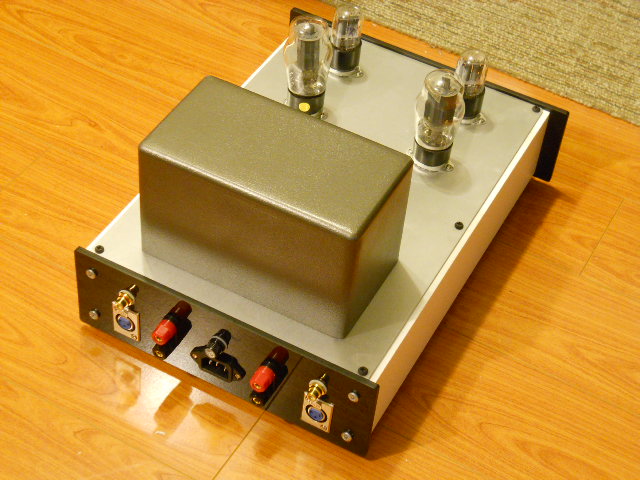

Model no: SEH-100-BAL / SEH-160-BAL
C$2,880 Untitled Document [US$ 2304] / C$3,480 [US$ 2784]

50Wrms x 2ch 8ohm (SEH-100-BAL) / 160W x 2ch 4ohm (SEH-160-BAL)

high current single-ended tube hybrid power amplifier

This is one of our new state-of-the-art design hybrid power amplifiers, which have both the advantage of a transistor amps high current drive (tight bass and good speaker control) and single-ended vacuum tubes amplification (warm and sweet sound with excellent depth, wide open and airy sound stage). The output transformer of old-school SET amplifier is replaced with a super high current, high damping factor solid-state transformer, which can output 50Wrms per channel at 8 ohm loading (SEH-100-BAL) or 160Wrms per channel at 4 ohm loading (SEH-160-BAL) , this amplifier can drive down to 4 ohm without problem. Built-in over-temperature and over-current protection for safety operation even under extreme condition. The tube section is working in pure class A single-ended operation in order to achieve the purest and most natural tonal quality. .

This amplifier has a very flexible tube rolling capabilities, the tube section can use tons of different power tubes like 6550, EL34, 6L6, 6V6, 6F6, 6K6, 5881, 6CA7, KT66,KT77,KT88...etc.

Built with input level / gain control, this feature can make this amp use as a single input integrated amplifier, or use in multiple amplifier (bi-amp / tri-amp ) mode , and can easily balance the gain between different power amplifiers..

If you were unaware of this amplifiers construction, and you judge the sound quality by listening only, you will believe it is a pure tube power amplifier and not a hybrid amp.You can have both the smooth and silkiness of single-ended sound with very good punch, rich and controlled bass.

Build with "AIRY/REGULAR" selector for all type of music (SEH-100-BAL)

For SEH-160-BAL, separate gain control included for easy matching of un-matched tubes.

Also equipped with headphone output and able to drive any headphone available.

No. of inputs 1 set of RCA input + 1 set of XLR input
No. of outputs 1 set of speaker outputs (4 - 16 ohm)
Freq response 2Hz - 100Khz (-3db)
S/N better than 90 db at full power
Gain x20 (26db) , tubes dependent


manufacturing hand-wired point to point for the tube section
Tubes used 2 x 6SL7 + 2 x 6L6GT (alt: 6550, EL34, 6L6, 6V6, 6F6, 6K6, 6G6,6Y6,5881, 6CA7, KT66,KT77,KT88)


1 year parts and labor warranty under normal operation conditions
standard chassis : Silver aluminum face plate with black anodize aluminum body

(optional chassis :  solid-oak, super-gloss MDF, metallic MDF black piano....etc)

 Customer feedback from: Barry:

There is something special for me in the relationship that I have when dealing directly with the designer and builder of high end products. Albert is such a person. This is my 5th purchase from him and the new SEH-100 amplifer is just fantastic for the ambient speakers that I have added to my system. As in all of his latest designs I can choose any number of tubes that change the sound without worry of damage to the product or the bias changing. Well done Al!!
