Hybrid Power Amps

Model no: WA-100 / WA-100i
Direct-out-of-the-factory price C$1,080 Untitled Document [US$ 864] / C$1,480 [US$ 1184]

HP-70-4.jpg HP-70-4.jpg

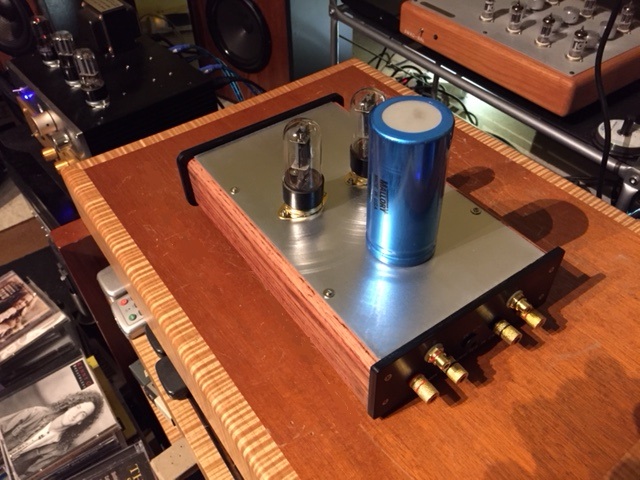

100W x 2ch (@ 4ohm) high power single-ended tube hybrid wonder amplifier

This is our state-of-the-art hybrid Wonder Amps, which combines both the advantage of digital amps high speed + high power drive (tight bass and good speaker control) and single-ended pure class A vacuum tubes amplification (warm and sweet sound with excellent depth, wide open and airy sound stage). The output transformer of old-school SET amplifier is replaced with a super high dynamics and high power digital transformer, which can output 100W continuous power per channel at 4 ohm loading. Super high efficiency switching MOSFET amplification circuit design ensure fastest attack response as well as extreme dynamics. Built-in over-temperature, over-current and DC output protection for safety operation even under extreme condition. The tube section is working in pure class A single-ended operation in order to achieve the purest and most natural tonal quality. One tube for each channel ensures maximum channel separation.

This amplifier has a very flexible tube rolling capabilities, the tube section can use tons of different power tubes like 6SL7, 6SN7, 6SU7, ECC32, ECC33, ECC35, 5961, 5962, CV181...etc. With optional 8 pin to 9 pin converter, can use 6DJ8, 6922, ECC88, ECC188, ECC288....etc.

Also come with input level / gain control, this feature can make this amp use as a single input integrated amplifier, or use in multiple amplifier (bi-amp / tri-amp ) mode , and can easily balance the gain between different power amplifiers..

If you were unaware of this amplifiers construction, and you judged the sound quality by listening only, you would believe it was a pure tube power amplifier and not a hybrid.You can then have both the smooth and silkiness of single-ended sound with very good punch, rich and controlled bass.

Delux high gloss solid-oak side panels for puriest and most natural sonic performance. Separate external power supply included.

The WONDER-AMP series has a very special features of able to power up by 12VDC input, which can use in anywhere with 12V car battery.

Super low impedance speaker driving capability, safely drive down to 2 ohm without lose of dynamics.

We strongly believe no other manufacturers can offer such a low cost high power amplifier with so good in sound quality. Sonic performance can easily surpass those selling 5 - 10 times more expensive in the industry.

Optional headphone output circuit + $80

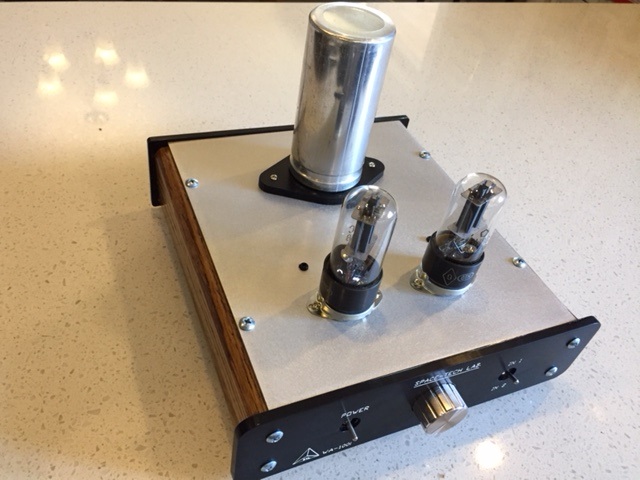

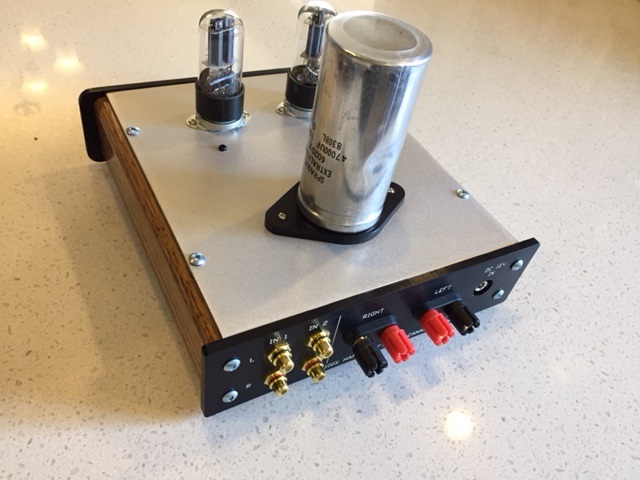

WA-100i is the enhanced integrated amplifier version of the WA-100, with two sets of line leve input and enhanced power supply



Specifications
No. of inputs 1 set of RCA input regular version/ 2 sets of RCA input for integrated version
No. of outputs 1 set of speaker outputs (2- 16 ohm)
Freq response 5Hz - 50Khz (-3db)
S/N better than 90 db at full power , norminal THD < 0.02% at 1W output
Gain x20 (26db) when use 6SN7 (default)
Phase

non-inverted

manufacturing hand-wired point to point for the tube section
Tubes used 2 x 6SN7 (alt: 6SL7, 6SN7, 6SU7, ECC32, ECC33, ECC35, 5961, 5962, CV181..etc)
 Output power 100W x 2 (4 ohm)



1 year parts and labor warranty under normal operation conditions
standard chassis : black plexiglass front and back, alumium top with solid-oak sides

(optional chassis :  all solid-oak, super-gloss MDF, metallic MDF, black piano....etc) with additional cost
