Hybrid Power Amps

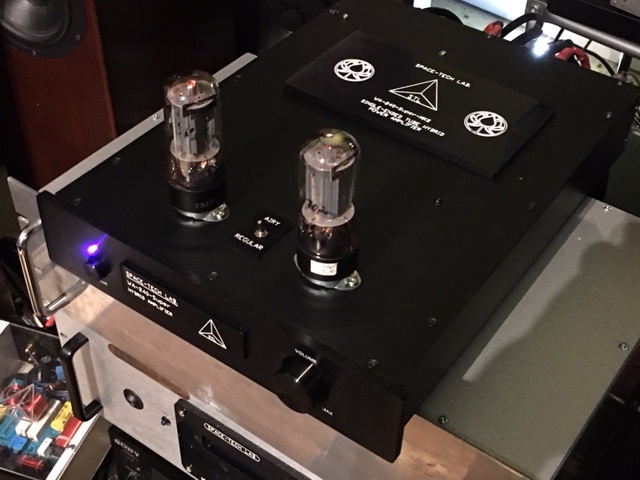

Model no: WA-240-Super-Mk2
Direct-out-of-the-factory price C$2,180 Untitled Document [US$ 1744]

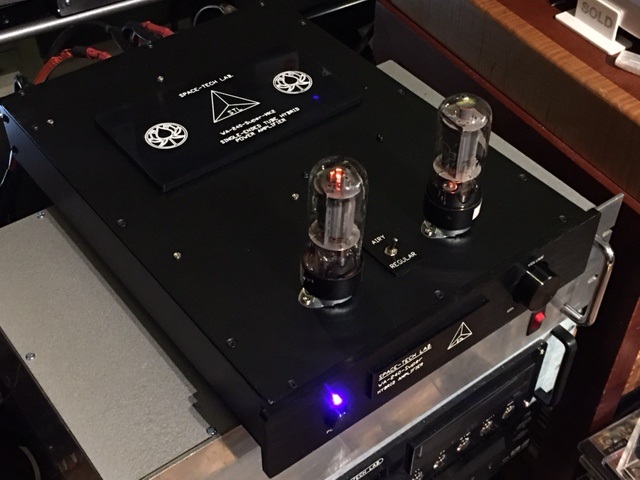

240W high power single-ended tube hybrid wonder amplifier

This is our state-of-the-art hybrid Wonder Amps, which combines both the advantage of digital amps high speed + high power drive (tight bass and good speaker control) and single-ended pure class A vacuum tubes amplification (warm and sweet sound with excellent depth, wide open and airy sound stage). The output transformer of old-school SET amplifier is replaced with a super high dynamics and high power digital transformer, which can output 240W total power at 4 ohm loading. Super high efficiency switching MOSFET amplification circuit design ensure fastest attack response as well as extreme dynamics. Built-in over-temperature, over-current and DC output protection for safety operation even under extreme condition. The tube section is working in pure class A single-ended operation in order to achieve the purest and most natural tonal quality. One tube for each channel ensures maximum channel separation.

This amplifier has a very flexible tube rolling capabilities, the tube section can use tons of different power tubes like 6L6,6V6,6G6,6K6,6Y6,6F6,6550,6CA7,5881,EL34,KT66,KT77,KT88,KT99,KT100,KT120, KT150 and their equivalents, simple plug and play without the need for any bias calibration.

Also come with input level / gain control, this feature can make this amp use as a single input integrated amplifier, or use in multiple amplifier (bi-amp / tri-amp ) mode , and can easily balance the gain between different power amplifiers..

If you were unaware of this amplifiers construction, and you judged the sound quality by listening only, you would believe it was a pure tube power amplifier and not a hybrid.You can then have both the smooth and silkiness of single-ended sound with very good punch, rich and controlled bass.

Super low impedance speaker driving capability, safely drive down to 2 ohm without lose of dynamics.

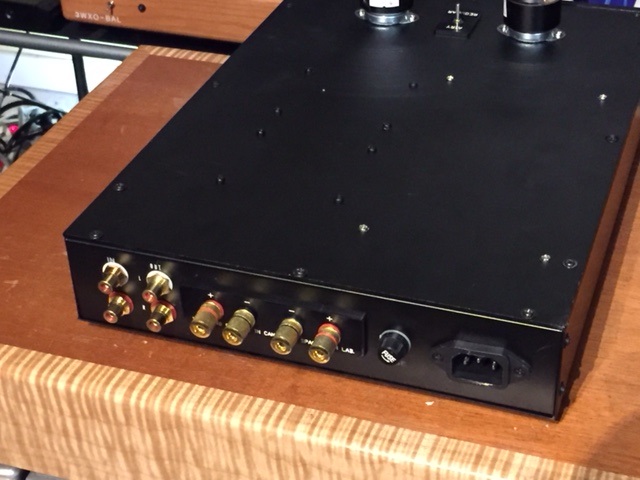

One set of RCA input and one set of RCA output included, easily connect to another power amplifier. Buyer can also ask for the output to be built with high pass filter for the connection to smaller power amplifier as bi-amp mid-high section drive.

Heavy duty gold plated brass speaker binding post. AC 100-240V input required.

We strongly believe no other manufacturers can offer such a low cost and high power amplifier with so good in sound quality. Sonic performance can easily surpass those selling 5 - 10 times more expensive in the industry.


No. of inputs 1 set of RCA input , 1 set of RCA output (to another amplifier)
No. of outputs 1 set of speaker outputs (2- 32 ohm or above)
Freq response 10Hz - 40Khz (-3db)
S/N better than 90 db at full power , norminal THD < 0.02% at 1W output
Gain x20 (26db)


manufacturing hand-wired point to point for the tube section
Tubes used

2 x 6L6GT (alt:6L6,6V6,6G6,6K6,6Y6,6F6,6550,6CA7,5881,EL34,KT66,KT77,KT88,KT99,KT100,KT120, KT150...and all their equivalents )

 Output power 240W (4 ohm) peak power output 2 channels


1 year parts and labor warranty under normal operation conditions
standard chassis : all metal, plexiglass+ alumium hybrid

(optional chassis :  all solid-oak, super-gloss MDF, metallic MDF, black piano....etc) with additional cost
