IR Remote Volume / Passive Pre-amp

Super delux and ultra heavy duty aluminum chassis upgrade possible from just $100 and up

Model no:   RV-001-SE
C$680 Untitled Document [US$ 544]

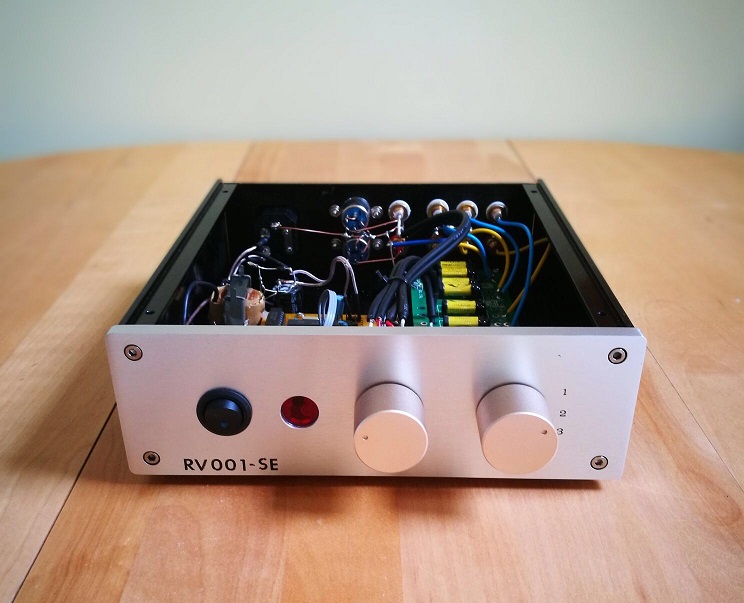

Hi-end motorized Infra-Red remote volume control / Passive pre-amplifier with manual 3 inputs selector



This is a hi-end infra-red remote motorized volume control / passive pre-amplifier with 3 sets of RCA inputs. This volume control can be controlled by an Univeral remote hand-held control or manually. This unit features manual volume 3 inputs selection function, as well as remote controllable volume / mute functions .

Input impedance of this remote volume control / passive pre-amp is 100Kohm , which can easily match either tube or solid-state signal source.

The sound quality can be describe as very pure and natural without coloration.

The set of XLR output is not a ture balanced output, but just for the convenience to connect balanced input gears, it is the same performance as connecting to the RCA output.


Specifications
No. of inputs 3 sets of  RCA  input (max. 10V p-p)

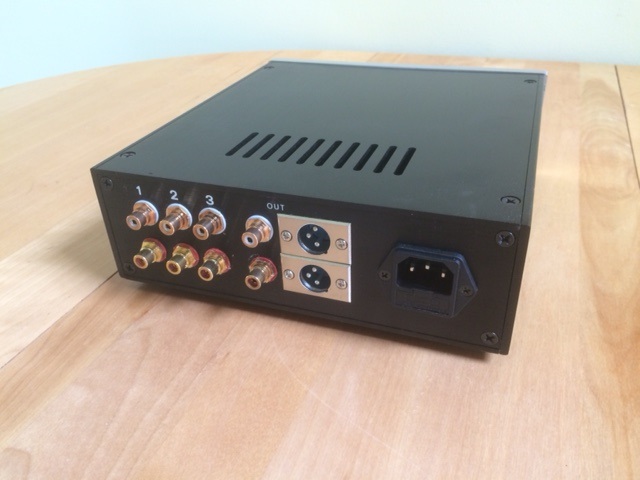

No. of outputs 1 set of RCA output + 1 set of unbalanced XLR output
Freq response DC - 150Khz
S/N better than 100 db
Distortion less than 0.001%
step of attenuation infinite
input impedance 100Kohm in log scale
Functions Volume Up, Volume Down, Mute




1 year parts and labor warranty under normal operation condition
standard chassis : smoke black plexiglass front and back, plexiglass top and bottom , low resonance white side panel.

Any other chassis option possible , additional cost might apply.
