Testing Equipment

Model no: ATT-2.01 (Audio Tube Tester)

Perform Gain / Gm / Noise test on audio tubes

Suggest retail price : C$2,680 (Audiophile version)

Direct out-of-the-factory price only C$1,380 Untitled Document [US$ 1104]

This is our advance designed audio tube tester, eqipped with the following powerful testing capabilities in a compact unit

1. Gain test (0 - 199.9)

2. Gm (transconductance) test 0 - 199.9mS( 199900 uS)

3. Noise test (0 - 199.9 mV on display), also with RCA output for external monitor / testing

4. This tester can test almost all common audio tubes 6SL7, 6SN7, 6SU7, 6AS7, 5691, 5692, 12AX7, 12AU7, 12AT7, 12AY7, 12AZ7, ECC32, ECC33, ECC35, 5814, 5751, 6L6, 6G6, 6V6, 6Y6, 6F6, 6K6, 6CA7, EL34, EL84, 5881, KT66, KT77, KT88, KT99, KT100, KT120, KT150, 6550, 6BQ5, 6922, ECC88, ECC188, ECC288, ECC81, ECC82, ECC83, 6H30, 6080, 6CG7, 6FQ7 and all their pin compatibles....( DHT / rectifier tubes with our optional extension test modules ).

For tubes not mentioned on the above listing, if they are 2.5~12V filament and pin compatibles with one of the tube sockets, then the test can be performed with this tester.

If there is no pin compatible tube sockets for the tube want to be tested, you can just build your own converter or order from us, to test any audio tubes either single pentode, single triode or dual triode within the tester's filament voltage range, just wire the corresponding pins of the tube under test, to matching one of the sockets pin configurations

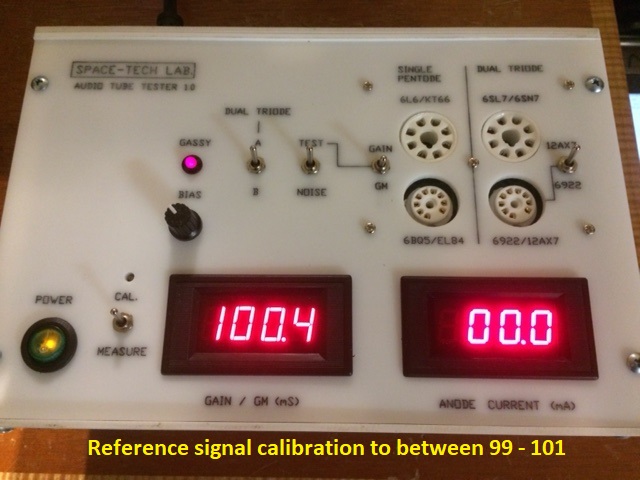

5. Easy calibration by just one calibration pot with digital meter indication, typical cal. to +/- 0.5% of 100.0 will be good enough for testing with 1% in the matching accurancy. No more expensive and time consuming calibration as those vintage tube testers.

6. Gassy / Grid leak tube indicator

7. A/B selector , set to A for single pentode, set to A or B for dual triode testing

8. variable bias (max. bias setting is around -0.8V, minimum bias around -35V) setting for test under whatever desired plate current condition

9. Regulated 200V power supply with 100mA current limit and short circuit protection, can test short circuit tubes without the fear of damage of tester

10. High stability and reliability, high precision and repeatability with all digital readouts.

11. Self-explanation panel, anyone with just little bit of knowledge on tubes can perform the testing, no more steep learning curve. Easy and well guided user manual included.

12. one year free parts and labor warranty and full technical support

User Manual click here

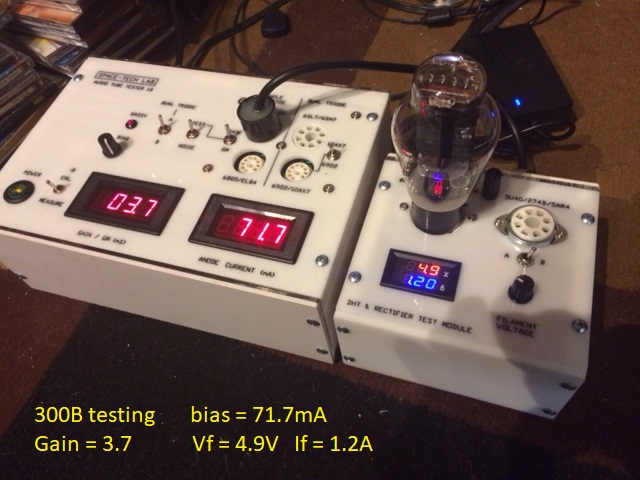

300B expansion module

300B/2A3/45/50/5U4G/274B/5R4/6X5 etc ...300B expansion testing module is available now +$380

Test also 3B22/866A...etc high filament current tubes + $680

845 expansion module

845 module can test what the 300B module can, and also 845/211...etc +$680 !!

Test also 3B22/866A/872A...etc high filament current tubes + $980

Tube Converter #3

Can be used in the 6L6 position, to be able to test different types of tubes (E282F, 6AH6, 6AK6, 7233, D3A, E810F, CK6485 and all their compatibles) + $150


Universal tube adapter, which can let you self-configure 6 pins (G, K, P1, P2, F+, F-) , in order to test whatever tubes which can fit into one of the 3 different sockets. +$200


Note: Regular version is for audiphile / retailer / showroom use only, not intented for heavy duty industrial usage.

Heavy duty industrial user version with replaceable external test sockets module available, additional cost apply.
